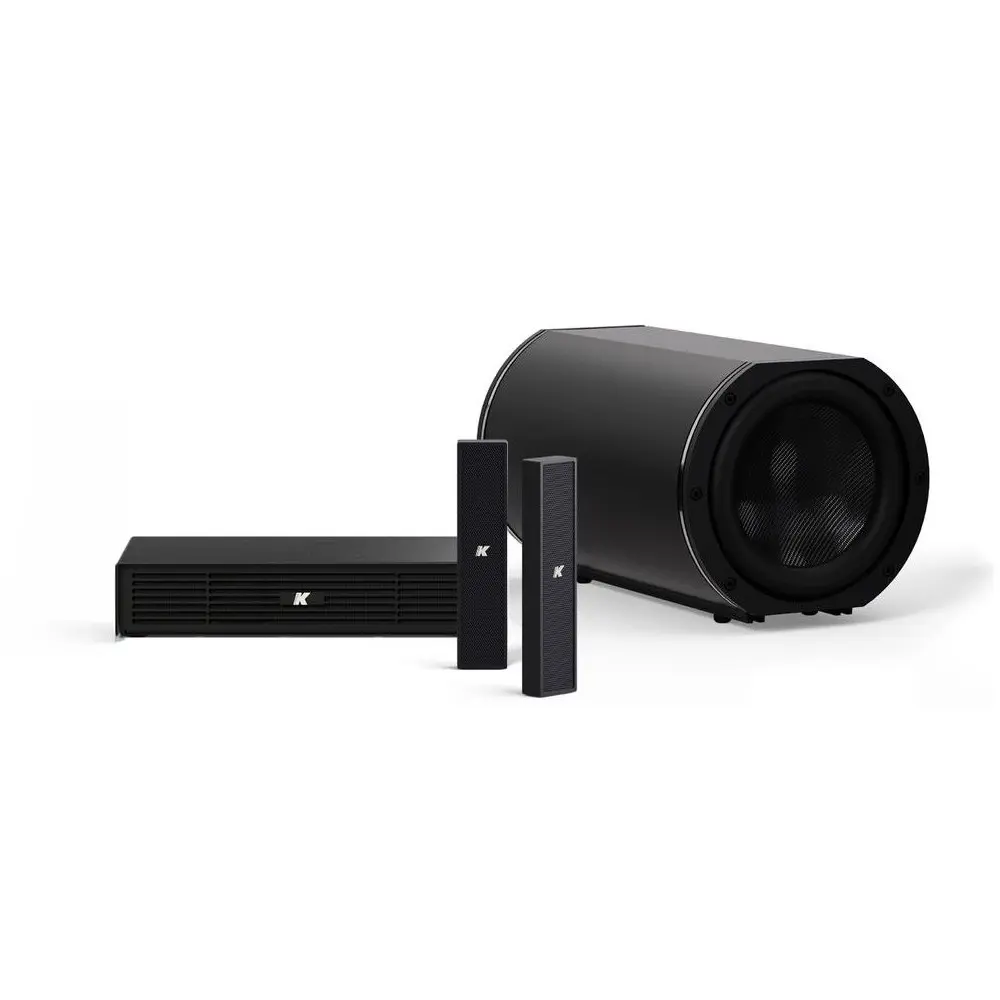

K-array Azimut KAMUT2L14 II

Technical specifications

Lyzard-KZ14 I
Type: ​ ​ ​ ​ ​ ​ ​​Line Array with PAT
Transducers: ​ ​ ​ ​​4 x 0.5” Neodymium magnet woofers
Frequency Range: ​ ​ ​ ​1,500 Hz - 18 kHz (-6 dB)
Maximum SPL: ​ ​ ​ ​98 dB (peak)
Dispersion: ​ ​ ​ ​ ​ ​Vertical 40° | Horizontal 140°
Power: ​ ​ ​ ​ ​ ​15 W
Nominal Impedance: ​ ​16 Ω
Connections: ​ ​ ​ ​IN+ IN- screw terminals
Material: ​ ​ ​ ​ ​ ​Aluminum
Color: ​ ​ ​ ​ ​ ​ ​Black also available in white and RAL colors
Finishes: ​ ​ ​ ​ ​ ​24K Gold, Rose Gold, Antique Gold, Polished
IP Rating: ​ ​ ​ ​ ​IP64
Dimensions (WxHxD): ​ ​22 x 100 x 11 mm
Weight: ​ ​ ​0.059 kg

Truffle-KRT25 Subwoofer

Type: ​ ​ ​ passive subwoofer

Transducers: ​ ​ ​5.26” ferrite magnet woofer with 1” voice coil + 4” passive radiator

Frequency range: ​ ​45 Hz – 150 Hz / 500 Hz (-6 dB)

Maximum SPL: ​ ​115 dB peak

Corner: ​ ​ ​ ​Omni (radiating all around)

Asset processing: ​ ​15 W

Nominal Impedance: ​16 Ω

Crossover: ​ ​ ​external crossover required

Connections: ​ ​ ​2-PIN euroblock connector (included)

Material: ​ ​ ​Aluminum

Colors: ​ ​ ​ ​Black or RAL colors

IP classification: ​ ​IP64

Finishes: ​ ​ ​Black textured paint

Dimensions (WxHxD): ​152 x 147 x 258 mm

Weight: ​ ​ ​2.5 kg

Kommander-KA02 I amplifier
Type: ​ ​ ​ ​ ​ ​ ​ ​4-channel switching Class D amplifier
Output power: ​ ​ ​ ​4 x 50 W @ 4 Ω
Frequency range: ​ ​ ​ ​20 Hz - 20 kHz (±1 dB)
Built-in DSP: ​ ​ ​ ​ ​Grouping, equalizing, limiters, routing, volume, speaker presets
​ ​ ​ ​ ​Power supply range: ​Specific AC/DC adapter 100-240V ~ AC, 50-60Hz input / 24V, 4 A
Minimum Impedance: ​ ​4 Ω (2 Ω PBTL)
Protections:  ​ ​ ​ ​​Overtemperature (Power limiting – Thermal shutdown), Short circuit / Overload
​ ​ ​ ​ ​ ​ ​ ​ ​output protection, Power limiting, Clip Limiter / Permanent signal limiter,
  ​ ​ ​ ​ ​​ ​ ​ ​ ​High-frequency protection
Power consumption: ​ ​2​0 W @ 4 Ω load, 1/8 nominal power (pink noise)
Material: ​ ​ ​ ​ ​ ​Aluminum
Color: ​ ​ ​ ​ ​ ​ ​Black
IP rating: ​ ​ ​ ​ ​IP20
Dimensions (WxHxD): ​​219 x 46 x 170 mm
Weight: ​ ​ ​ ​ ​ ​0.7 kg
Inputs: ​ ​ ​ ​ ​ ​4x balanced input: Euroblock 1.5/3-ST-3.81
​ ​ ​ ​ ​ ​ ​ ​ ​3.5 mm jack unbalanced analog stereo AUX input
​ ​ ​ ​ ​ ​ ​ ​​TOSLINK optical input
Outputs: ​ ​ ​ ​ ​ ​2x Euroblock 2.5/4-G-5.08
Digital: ​ ​ ​ ​ ​ ​​4x USB-A 2.0
​ ​ ​ ​ ​ ​ ​ ​​1x RJ45 Ethernet
​ ​ ​ ​ ​ ​ ​ ​​Bluetooth 4.1 Low Energy
​ ​ ​ ​ ​ ​ ​ ​ ​Wi-Fi IEEE 802.11 b/g/n
Remote control: ​ ​ ​​Wi-Fi – special K-array Connect mobile app  Ethernet – wired K-framework3 multiplatform design and tuning ​ ​ ​ ​ ​software
